Step 1: Planning and Preparation

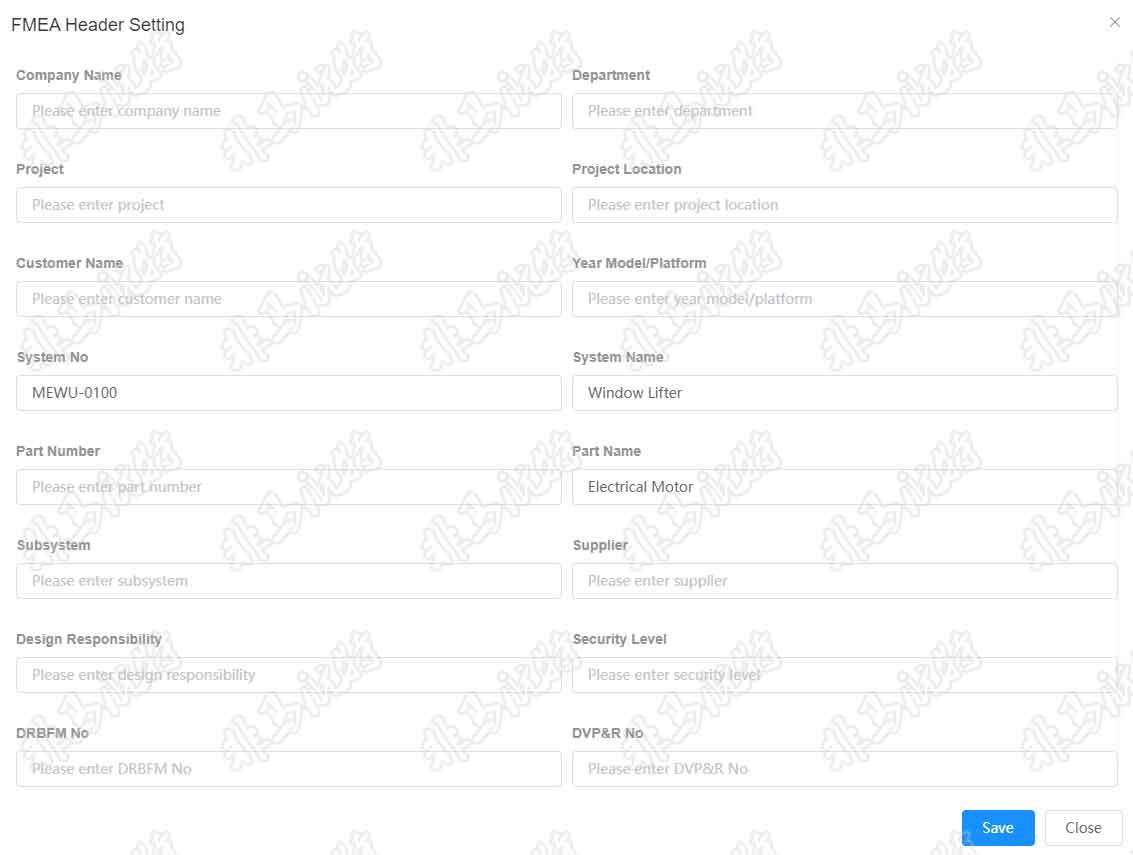

In the first step of planning and preparation, FMEA Hunter manages the intent, timing, team formation and tasks of the project. Determine the analysis scope and analysis object, manage the header information of the FMEA, and confirm the benchmark FMEA using the previous experience as the basis for structural analysis.
Step 2: Structure Analysis

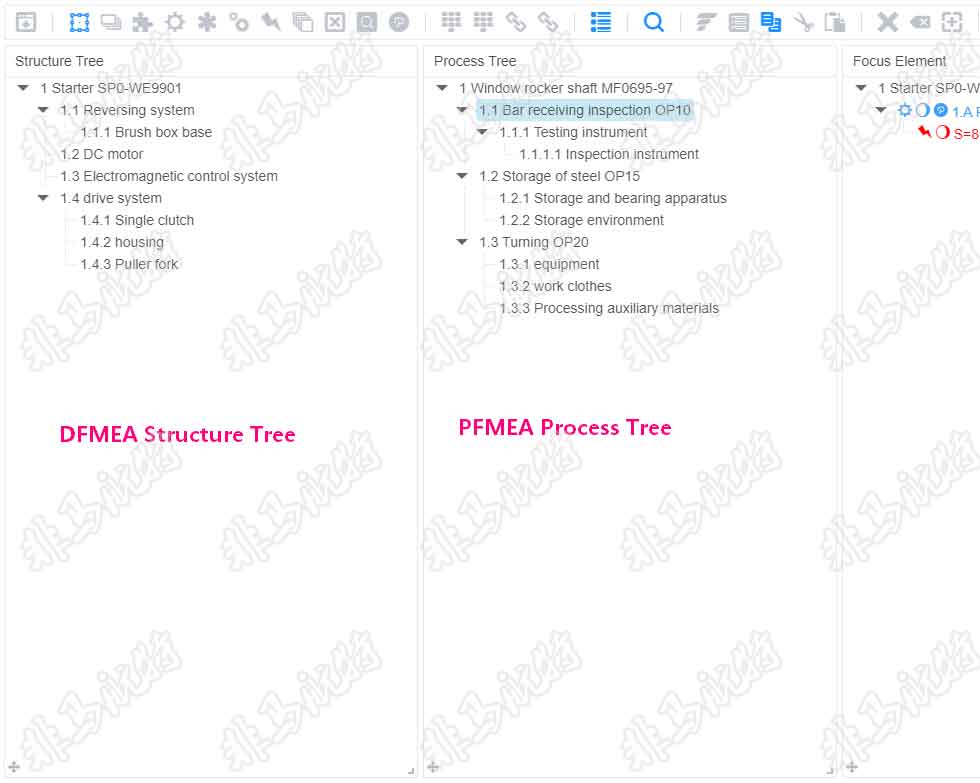

The structure analysis function of FMEA Hunter can be used to quickly build product structure or determine process items, process steps and work elements. Visualize the analysis scope as the basis of the functional analysis steps.
Step 3: Function Analysis

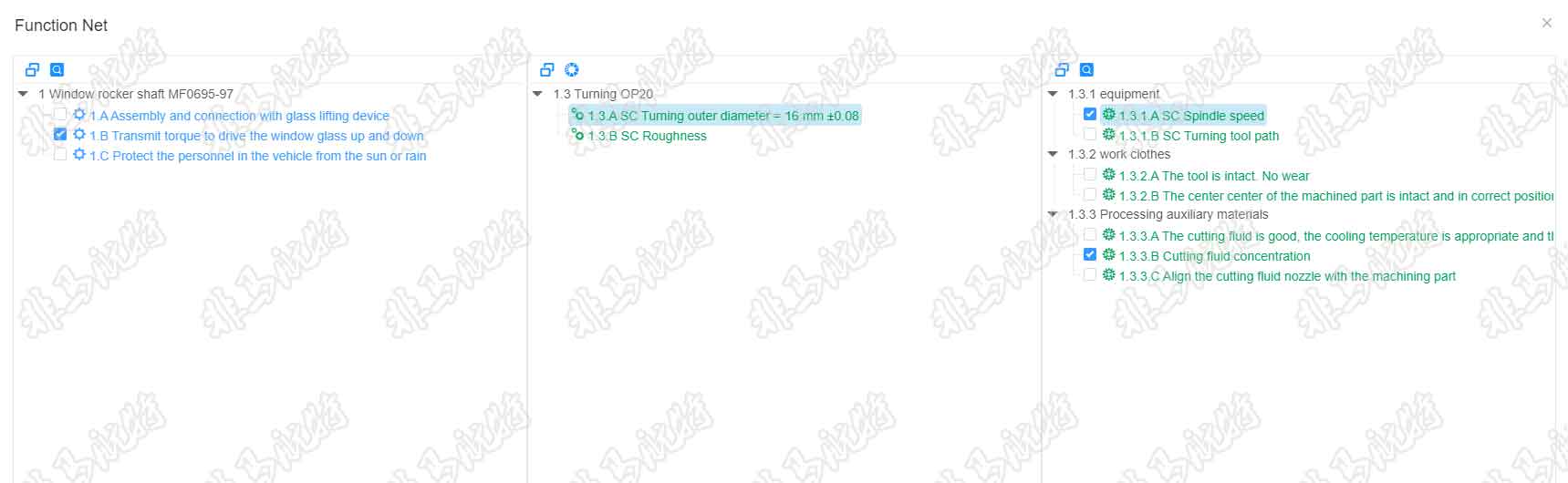

On the basis of structure analysis, analyze the function, requirements, product characteristics and process characteristics of structural elements, and fill in the specific attributes of each element (such as classification, specification, etc.). The function matrix is used to establish the correlation of functions, requirements, product characteristics and process characteristics at all levels. The function network can intuitively display the correlation of functions at all levels.
Step 4: Failure Analysis
On the basis of function analysis, FMEA Hunter can quickly establish failure and failure chain, and identify potential failure effects, failure modes and failure causes of functions.
Step 5: Risk Analysis
Severity rating for failure effects in each failure chain, the failure cause shall be rated for Occurrence and detection. It also allocates prevention control to failure causes and detection control to failure causes and failure modes. Determine high-risk failure modes according to the action priority table.
Step 6: Optimization

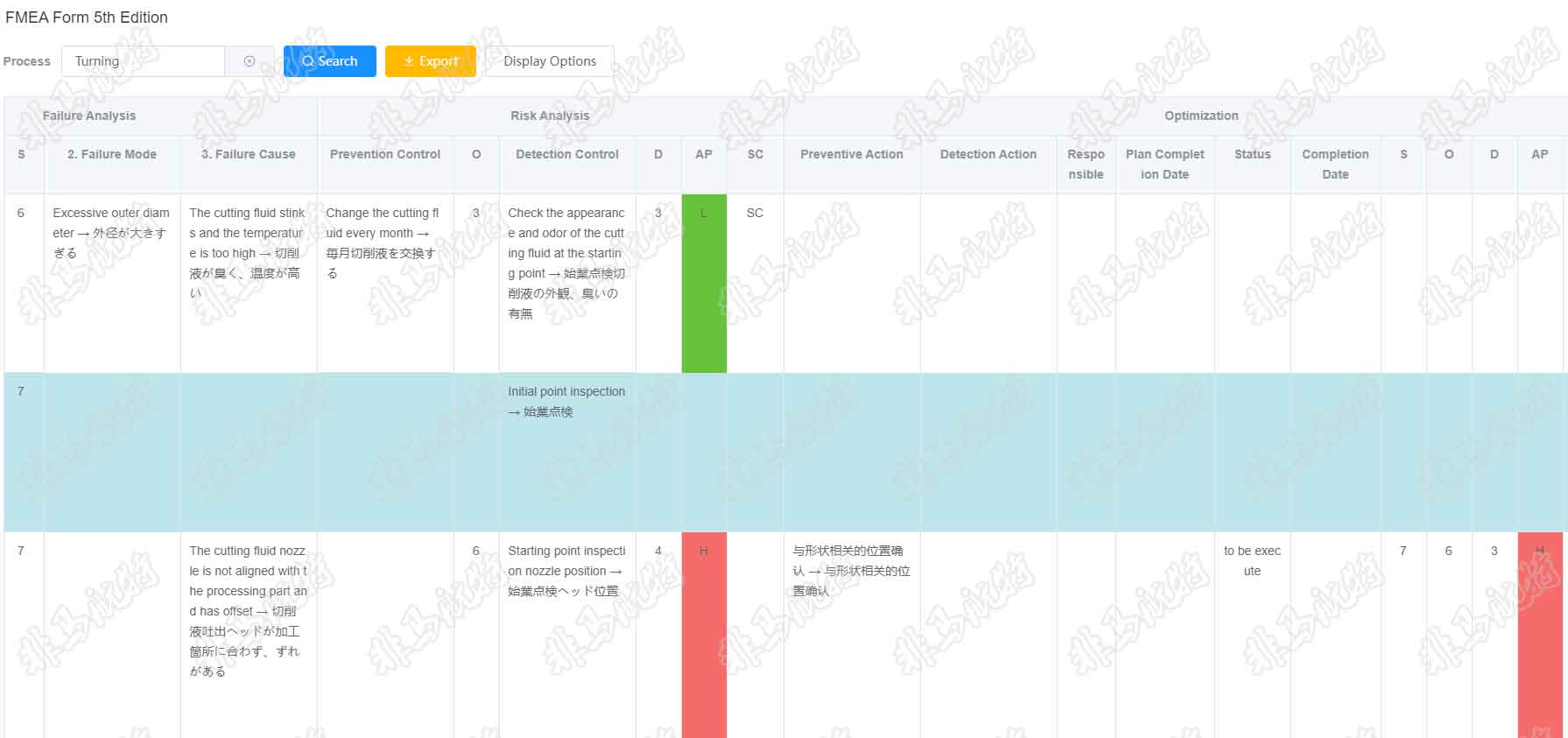

The software has the function of task management. For the failure of high risk, after determining the risk reduction action, assign responsibilities and time limit for the implementation of the action, and track and implement the action. Implement and document the action, including the confirmation of the effectiveness of the action implemented and the risk assessment after the action are taken, so as to optimize again.
Step 7: Results Documentation

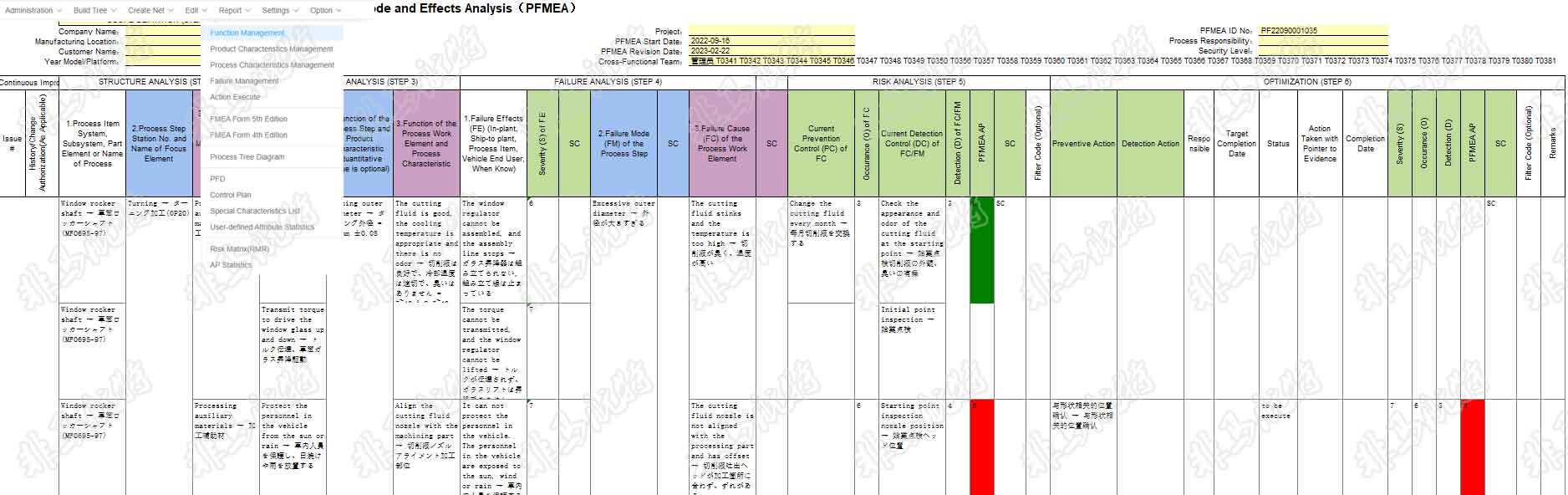

It forms a variety of report forms and can be exported to Excel documents, which can enable you to quickly pass the review.
